Our measuring equipment includes:

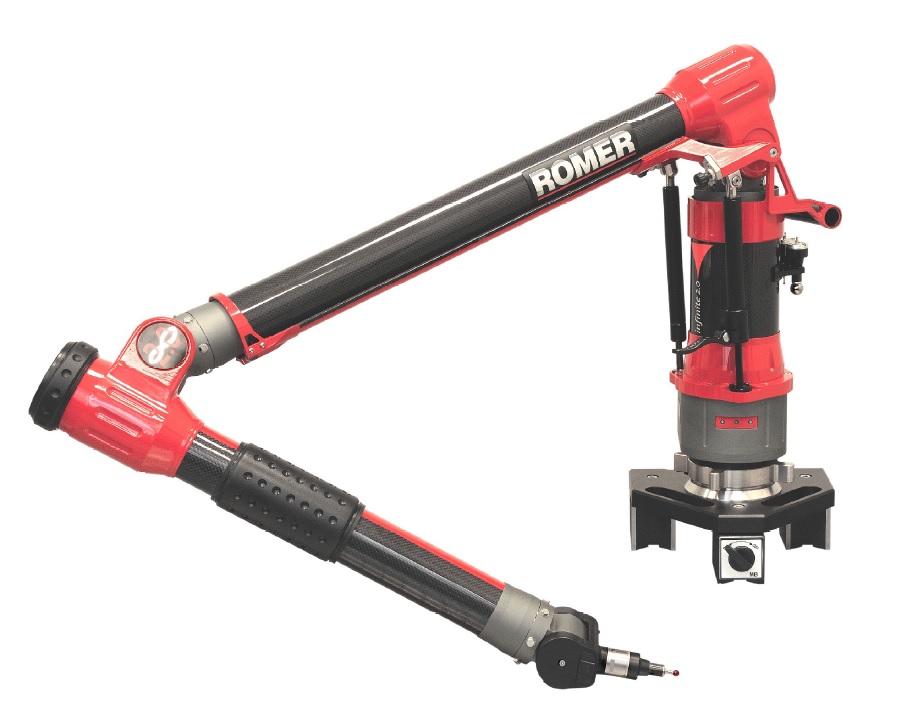

 Portable Measuring Arm

7 axis with a 1.8 meter measuring envelope.

              Carbon Fibre

              Thermally Compensated

              Traceability – Current Certificate of calibration, and NIST length bar

              31 Micron Volumetric Accuracy, 16 Micron Repeatabilty

              Portable –  fast 5 minute setup.

              Various Stylii for Probing. 15mm – 0 mm dia (pointer)

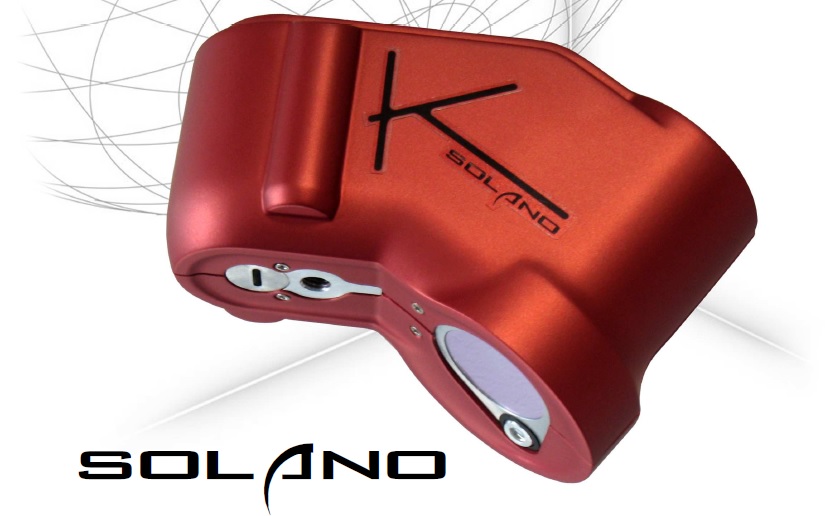

Kreon Laser Scanner

             40,000 Points/Second

             100 mm wide laser stripe

              40 µ Accuracy and 25 µ Repeatability

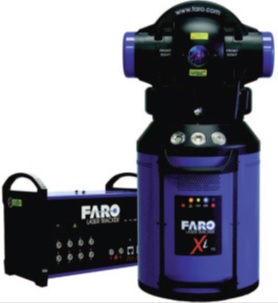

FARO Laser Tracker

Radial measurement range of up to 115 feet (35 m).

Typical accuracy = 25 µ + 1 µ/m

1.5”, 0.85”, 0.5” Spherically Mounted Retro reflectors.

Full set of targets/ nests, extension bars etc.

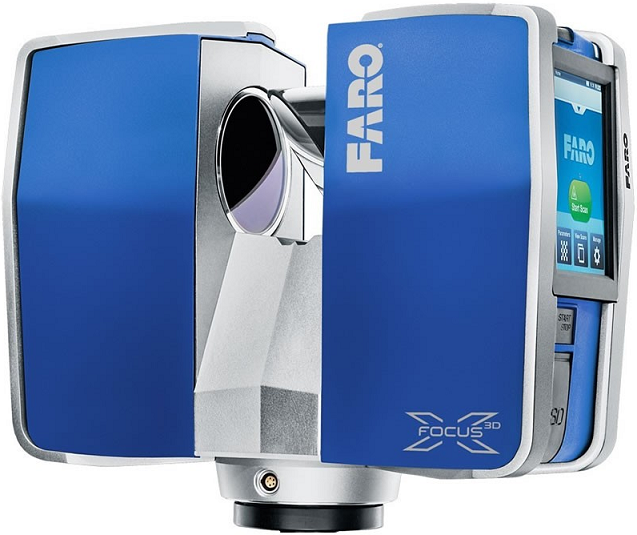

FARO Focus3D X330 Laser Scanner

Up to 1,000,000 Points/Second

0.6 M- 330M  range

Integrated GPS and Compass

Used outdoors in direct sunlight or indoors





















We also use specialized fixturing for difficult to handle parts.



SOFTWARE

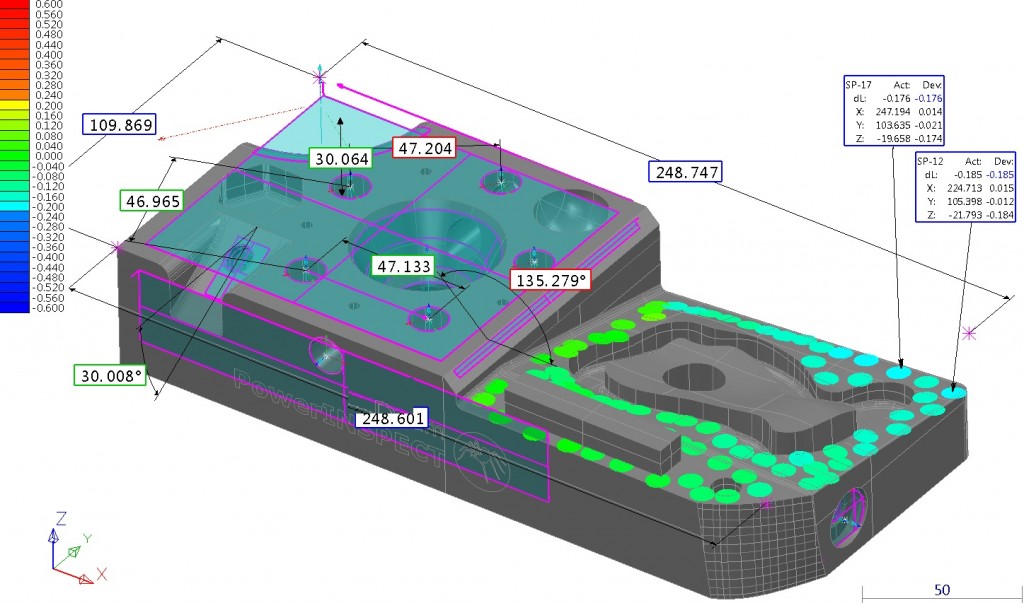

Modern Inspection Software. Tabulated and graphical reports presented in industry standard formats.

Highly presentable and easy to understand even for people without an engineering/ metrology background. We can also easily provide raw measurement data for CAD. Eg primative 3d Surfaces, wireframe, curves and points.

 Specialized CAD and Reverse Engineering Software – featuring Surface/Solid/Polygonial modelling.  We can provide simple wire-frame, Point cloud (IGS, ASCII), Triangles (STL), CAD formats including IGES,STEP and Parasolid. Other formats available on request.

 We have the necessary experience to supply high quality, fully surfaced models from 3D Scan data, for use in all CAD/CAM, 3D animation or rendering packages.
