Laser Scanning – RE- Pressed Part

Example project – Automotive pressed metal part, scanned, triangulated and surfaced for CAD – in this case output to Solidworks for tool design.

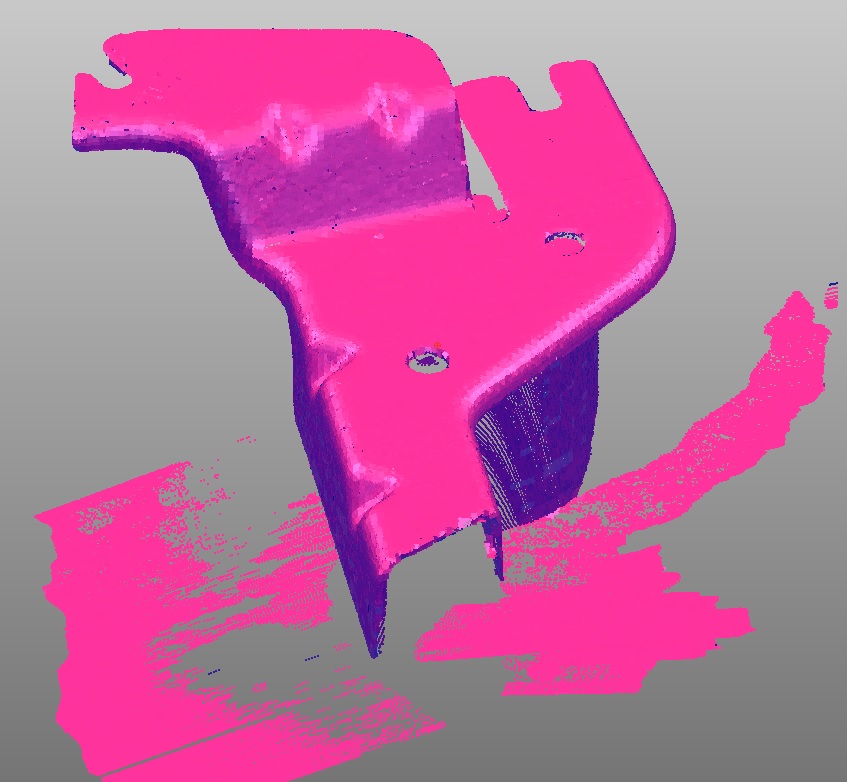

Raw Scan data - point cloud
Raw Scan data – point cloud

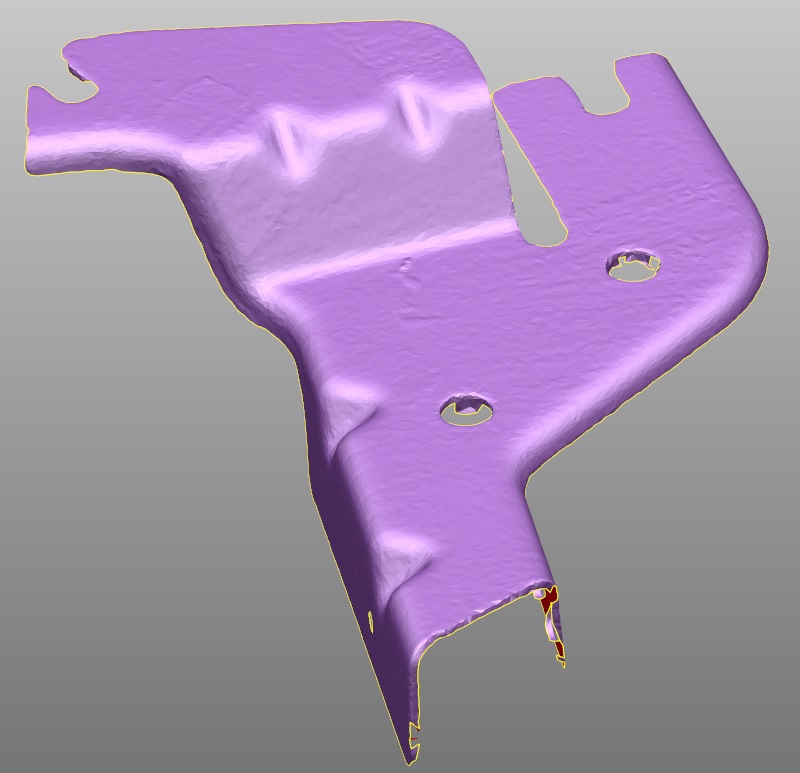

Triangulated point cloud
Triangulated point cloud

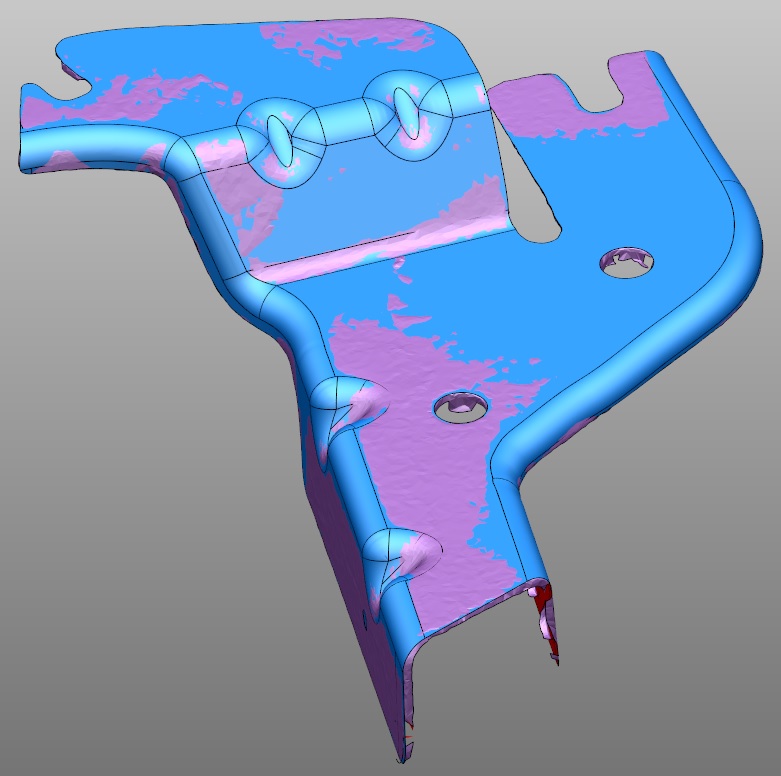

Surfaced STL
Surfaced Triangle Model

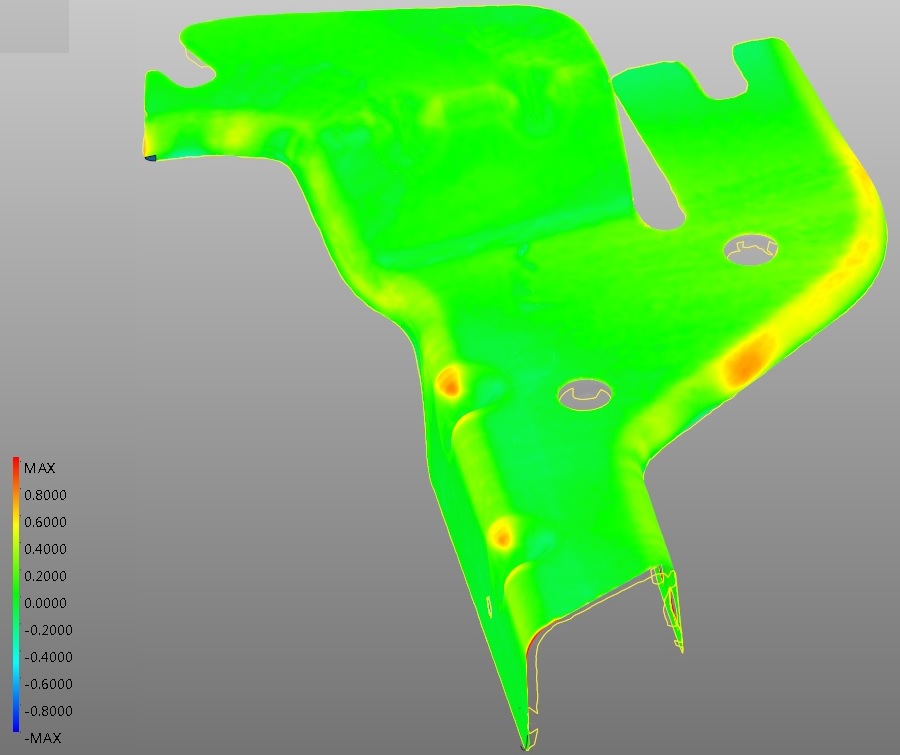

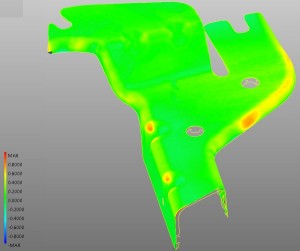

Error analysis of Surface fit to Scandata for QA
Error analysis of Surface fit to Scandata for QA
